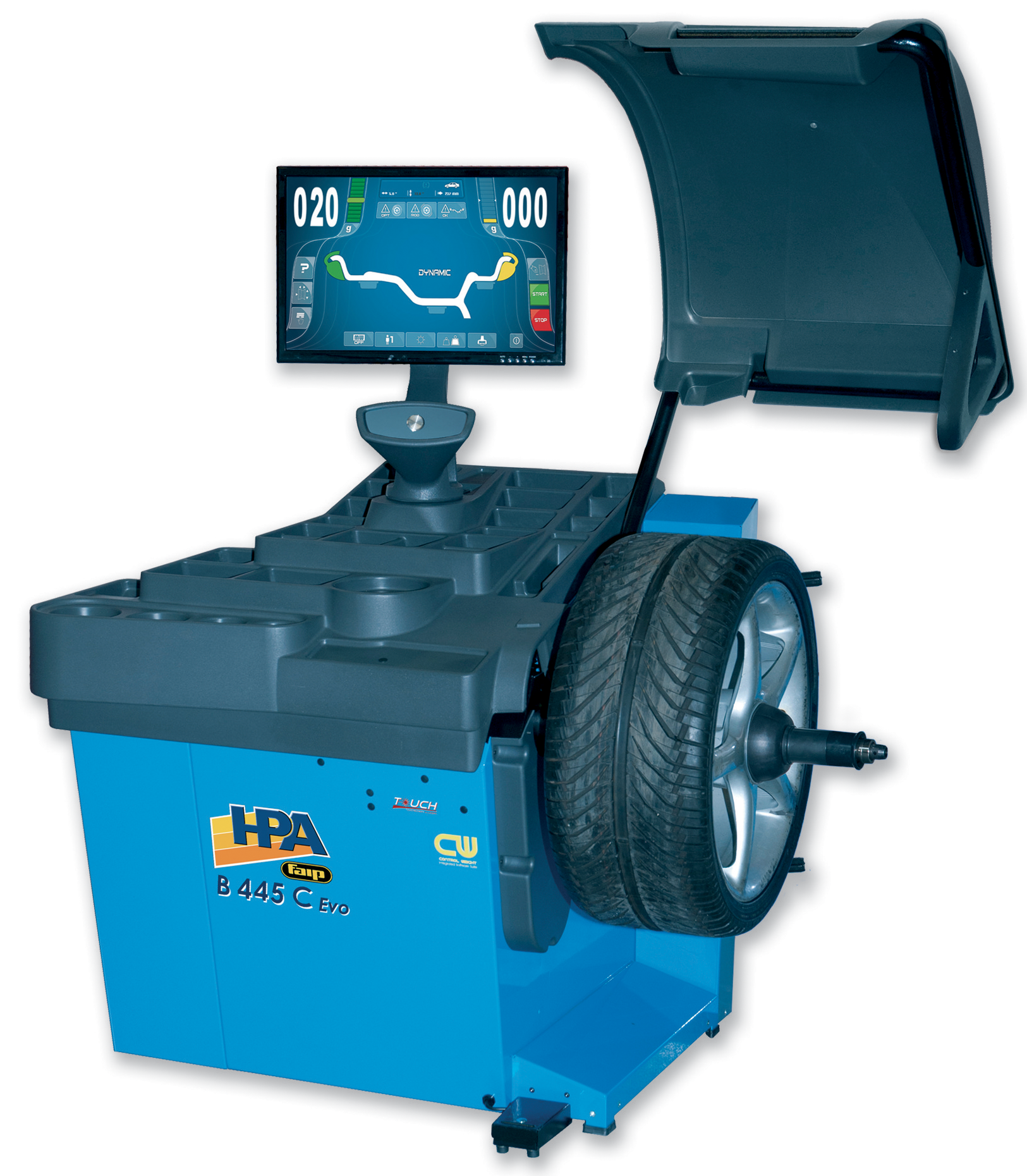

B 445 C EVO
Description

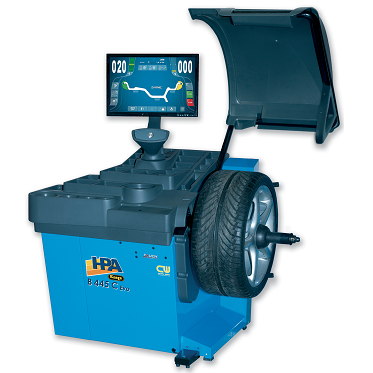

The New B445C Evo Touchscreeen and Contact-less wheel balancer.
Designed for the tyre specialist or dealership.
Fast, automatic wheel balancer , no requirement to touch the wheel.
Features

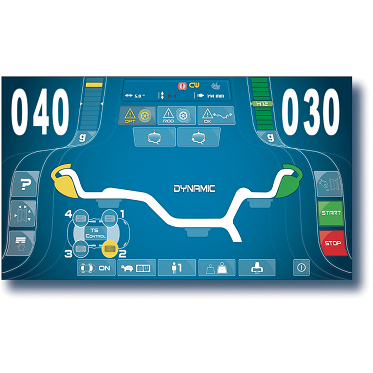

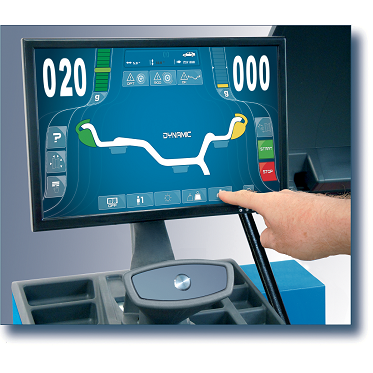

User friendly interface with the latest touchscreen technology simplify and speed up all operations.
Electrolock wheel clamping - New automatic electromechanical system for shorter operating time and higher centring accuracy.

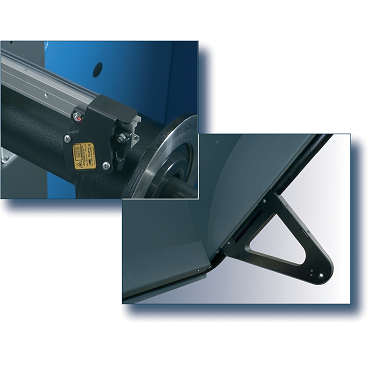

Contact-less system for dimension measurement - With a combined system which includes internal laser sensor and external sonar sensor (SMD), the B445C Evo automatically measures the wheel without any intervention from the operator.

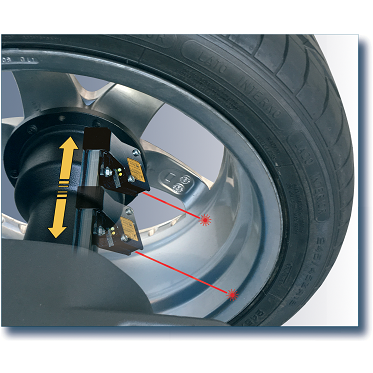

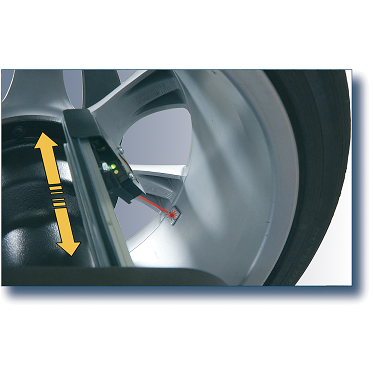

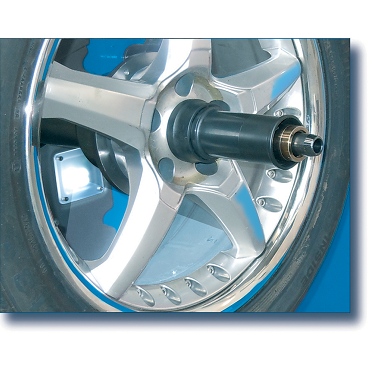

Weights Application - The internal Laser pointer indicates the exact position of the adhesive weights with maximum precision.
Tyre Set Control Program - A special vehicle tyre set diagnostic tool. Once all wheels data are stored, the program suggest optimum placement on the vehicle.
Specification
Supply Voltage: 230V / 1 Phase / 50-60 Hz
Shaft Diameter: 40mm
Noise Level: <70 dB(A)
Spinning Speed: 75-85-98 RPM
Rim Diameter Setting Range: 1” – 35”
Rim Diameter Measurable: 10” – 32”
Rim Width Setting Range: 1.6” – 23.6
Maximum Wheel Width with Guard: 560mm
Maximum Wheel Diameter with Guard: 1117mm
Maximum Wheel Weight: 75kg
Average Measuring Time 7 Seconds
Machine Weight : 145kg

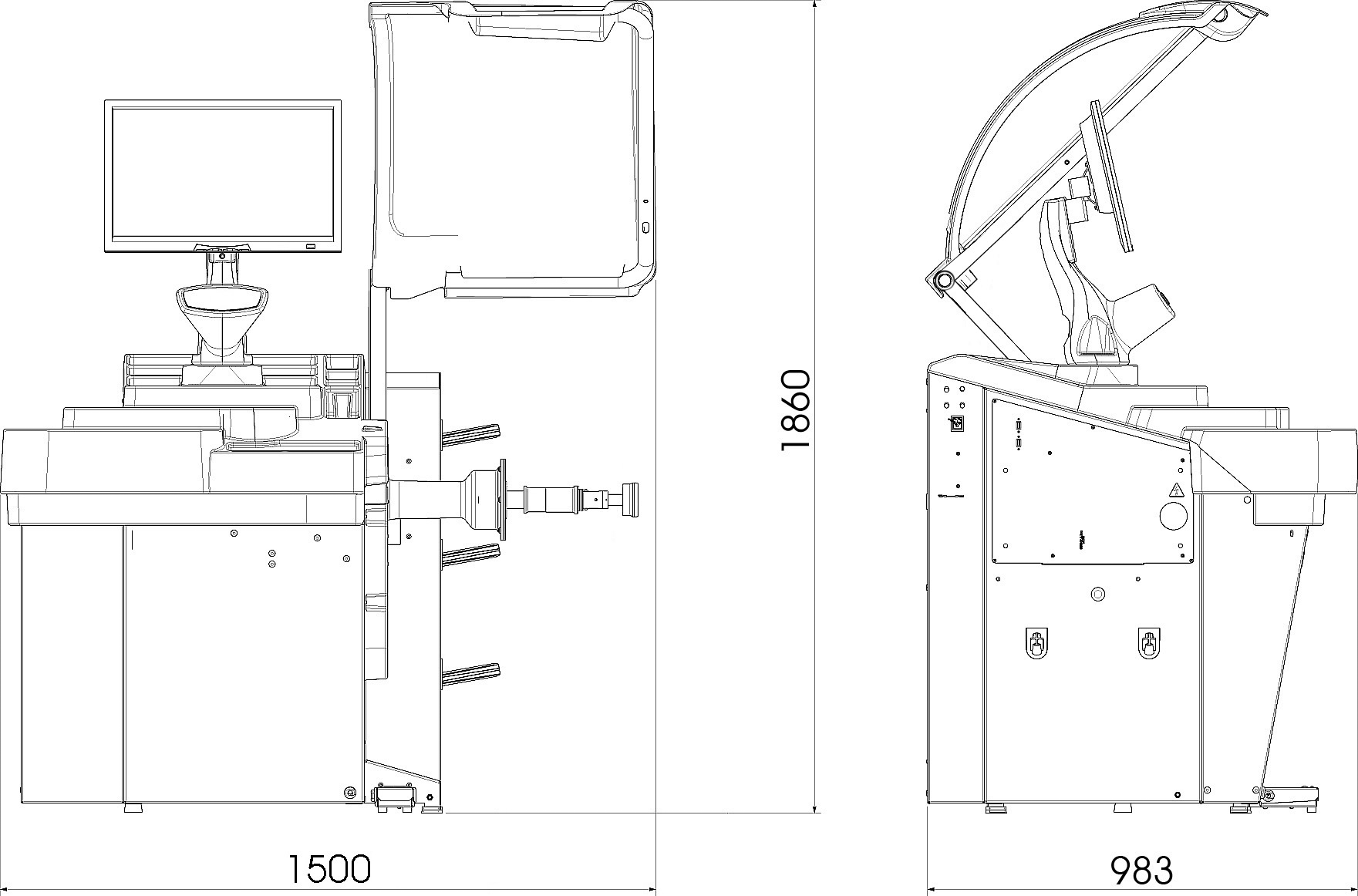

Dimensions
Diemensions
