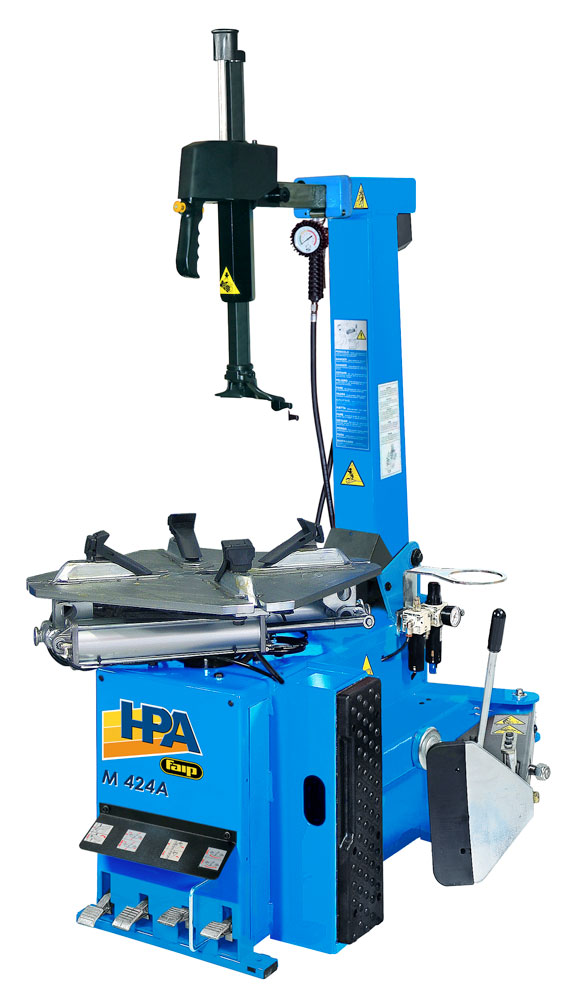

M424 A - Air Assisted Head
Description
Description:
Air Assisted Fitting Head
Automatic tyre changer for alloy rims from 10” to 24"
Outside locking up to 24".
Ideal for low profile, “UHP” and “Run Flat” tyres.
Bead breaker blade extendable.
Single speed motor.
Can be supplied with Ally 30 Help Arm.
Specification
Made In Italy
Rim Diameter : 10” to 24”
Bead Breaking Power ( Blade ) – 10 BAR / 15,500N
Bead Breaking Blade Opening – 380mm
Working Pressure : 10 BAR
Maximum Wheel Diameter: 1100mm / 43”
Maximum Wheel Width: 3” to 14”
Motor: 1 Speed 230V / Single Phase / 50-60Hz
Noise Level : < 70 dB ( A )
Maximum Self Centering Torque : 1,200 NM
Weight: 255 Kg
Dimensions
Dimensions
Downloads
Accessories
Complete with standard accessories
Tyre Lever
Set of 4 Jaw Pads
Plastic Cover for Blade
Plastic Cover for Tyre Lever
Plastic Inserts for Fitting Head ( 2)
Optional Extras
Ally 30 Help Arm
Set of Motorbike attachments
Plastic tool headset.
