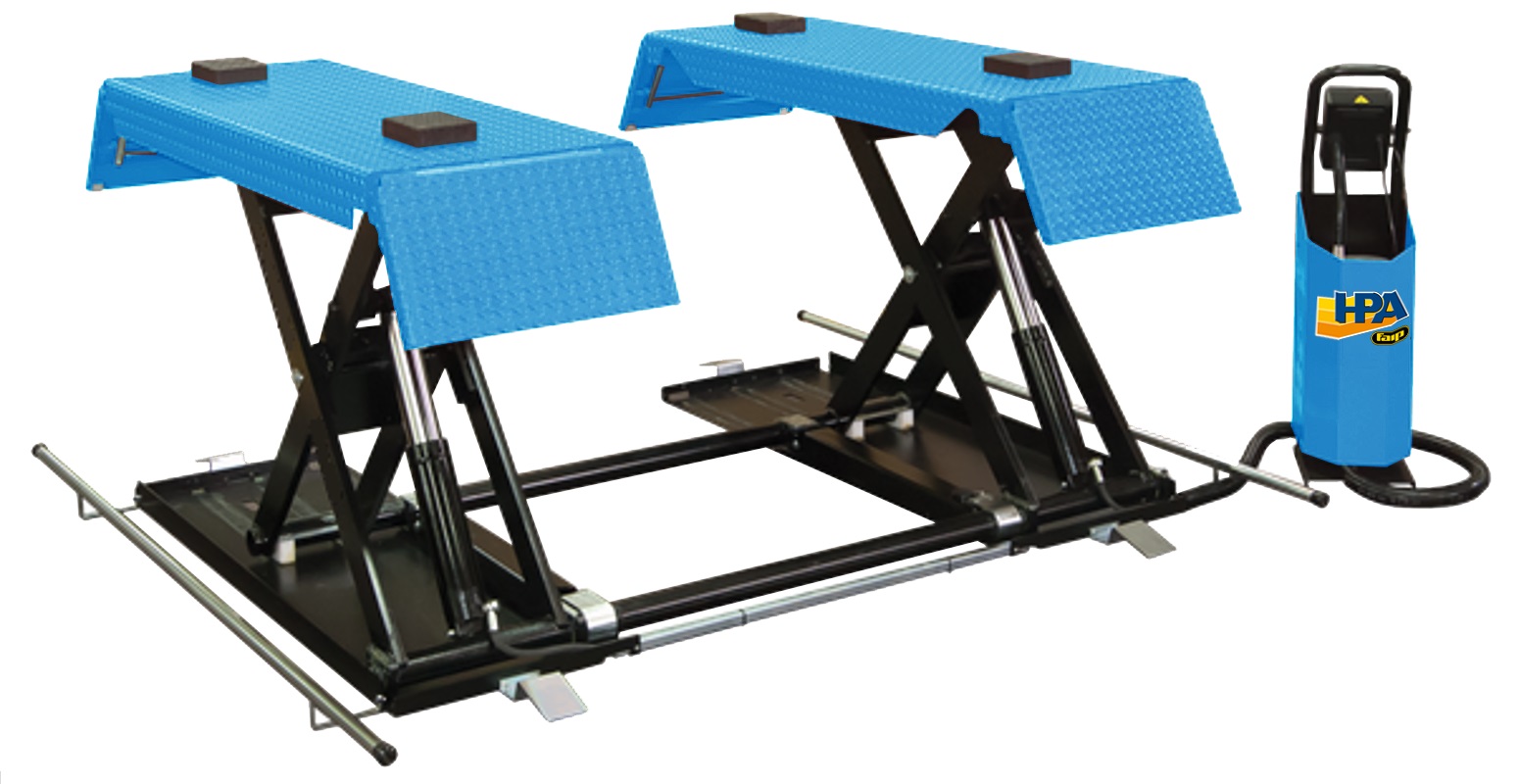

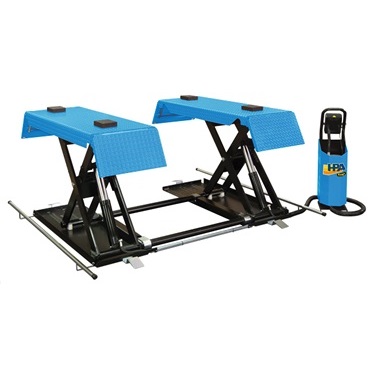

SUPERLIFT 36-1XCB / 32-1XC B Single Scissor 3,600 & 3,200 KG
Description
Reversible low-profile electrohydraulic scissors lift for cars, SUVs and vans; ideal for tyre specialists, car workshops, and body repairers.
Capacity: 3.6t (SUPERLIFT 36-1XCB) and 3.2t. (SUPERLIFT 32-1XCB)
Runway levelling guaranteed by 2 sturdy anti-torsion connection bars.
Automatic engagement of mechanical safety locks with pneumatic release sysytem
Runways with suspended flaps which also act as vehicle access ramps
Low voltage control unit with "dead-man" control system.
On floor installation
Designed in Italy.
Specification
Load Capacity:
36-1XC - 3,600 Kg
32-1XC - 3,200 Kg
Max Lifting Height: 1000 mm
Min Lifting Height: 115 mm
Lifting Time: 25 Seconds
Electric motor 3 Kw

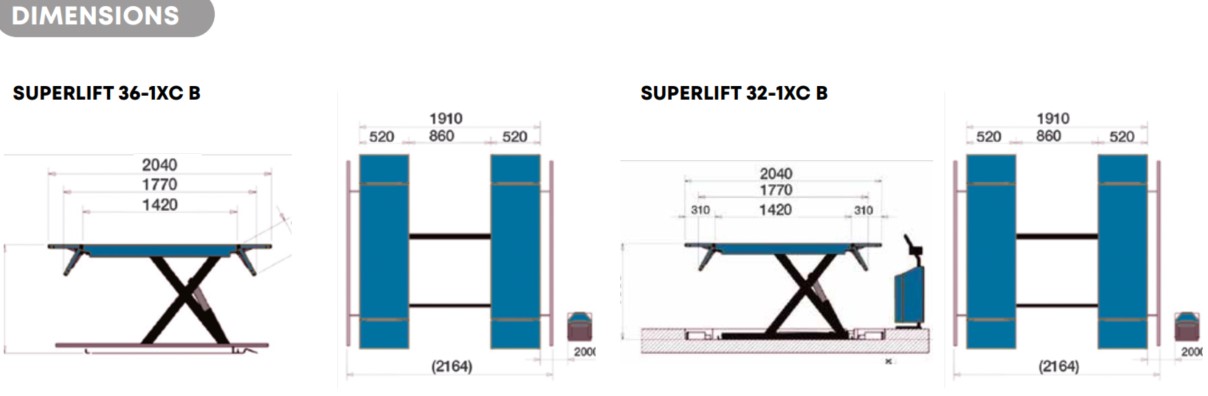

Dimensions
Superlift 36-1 XC B & 32-1 XC B
![Superlift 36-1 & 32-1 XCB (Dimensions)](/images/ww/dimensions/SUPERLIFT%20DIMENSION.jpg)
