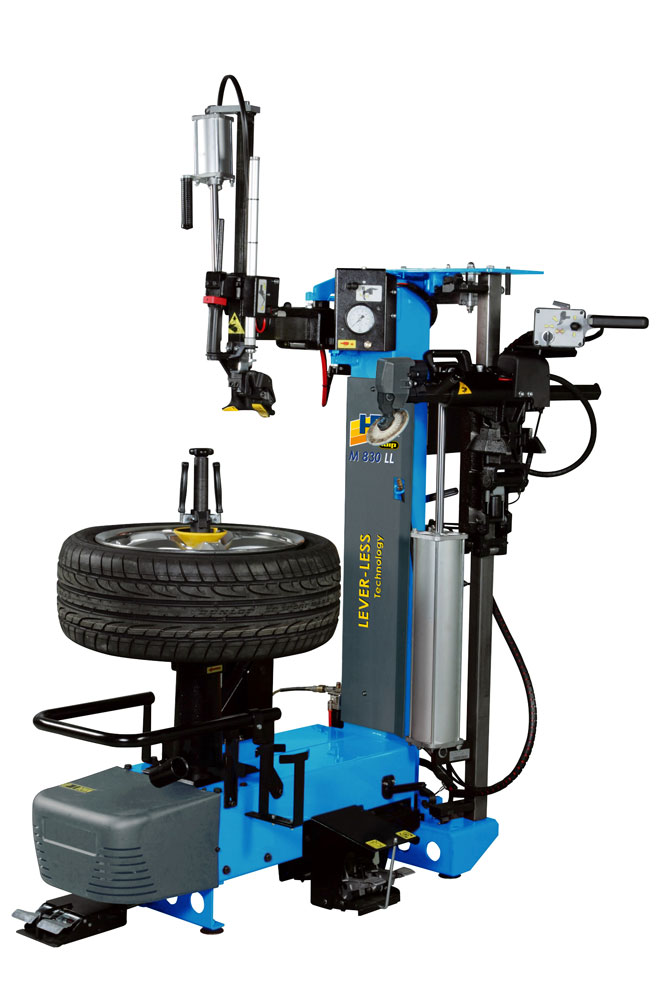

M830 LL+ KWL30
Description

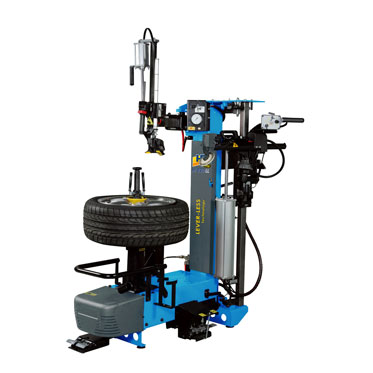

Universal super-automatic tyre changer for rims from 12” to 30".
Ideal for low profile, “UHP” and “Run Flat” tyres.

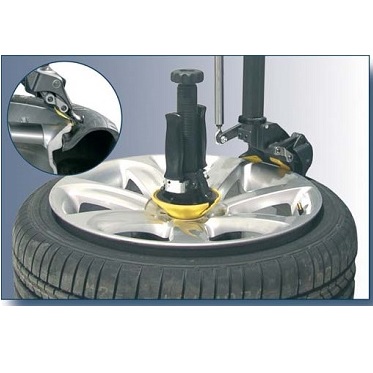

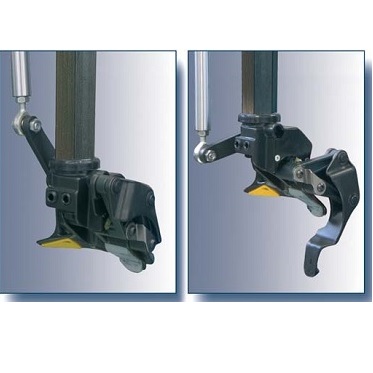

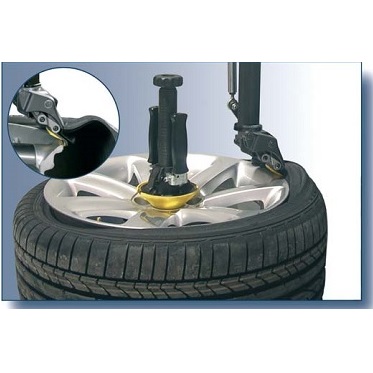

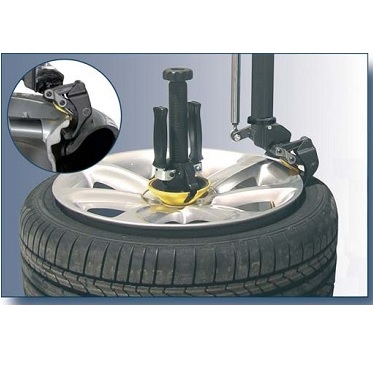

“LEVER-LESS” (without tyre lever) technology incorporated in to the fitting head

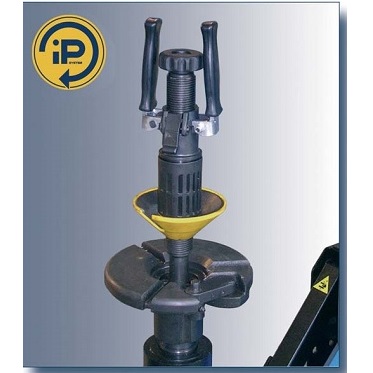

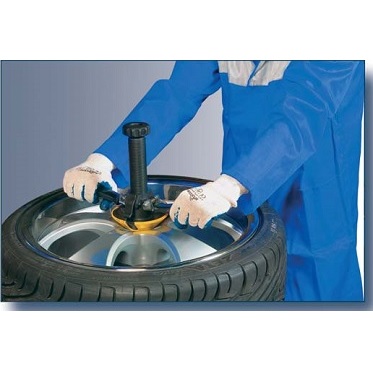

Universal axial turntable locking device.

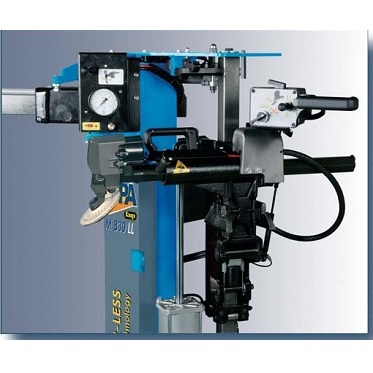

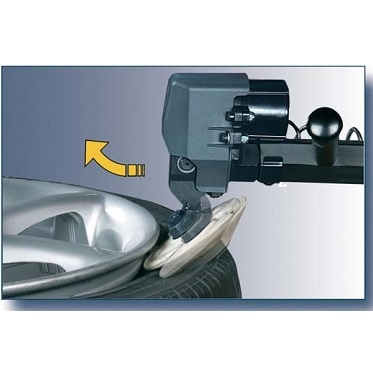

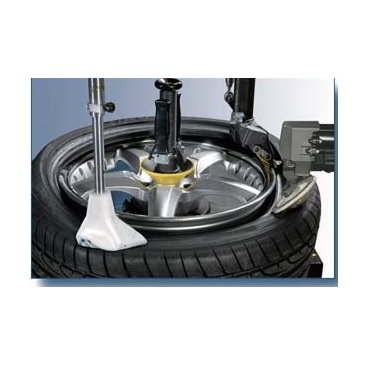

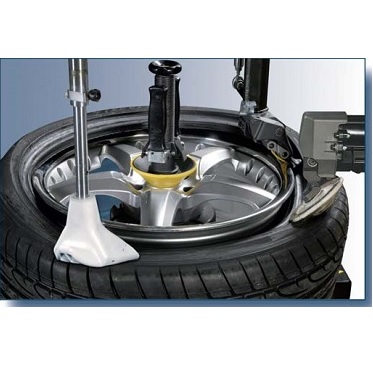

Handy multipurpose control for “dynamic” bead breaking by means of a telescopic conical disk system.
Two speed motor with “IP” (Increased Power) System

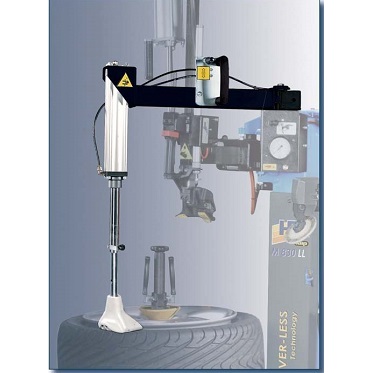

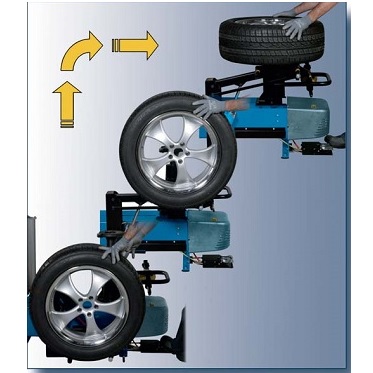

Complete with KWL 30 pneumatic wheel lifting device
Specification
Made In Italy
Rim Diameter : 12” –30”
Bead Breaking Power ( Blade ) : 10 BAR / 15,500 Nm
Bead Breaking Blade Opening : 540 mm
Maximum Wheel Diameter: 1200 mm / 47”
Maximum Wheel Width: 15”
Motor: 1 Speed 230V / Single Phase / 50-60Hz
Working Pressure : 10 BAR
Noise Level : < 70 dB ( A )
Maximum Self Centering Torque : 1,200 NM
Maximum Wheel Weight: 85kg
Weight: 310 Kg
Dimensions
Dimensions
Downloads
Accessories

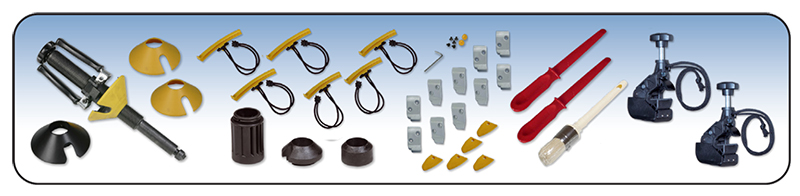

Complete with Standard Accessories
Complete Universal Locking Pistol
Wheel cantering cones set (cones + protectors)
1 Pair of PPT plastic bead clamp
3 Long plastic rim protectors
3 Short plastic rim protectors
2 Bead protection plastic lever
Set of plastic inserts for fitting head
Lubricating Brush
