M422
Description

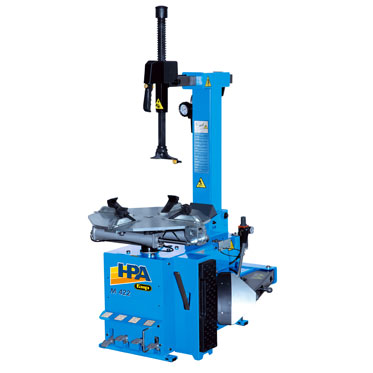

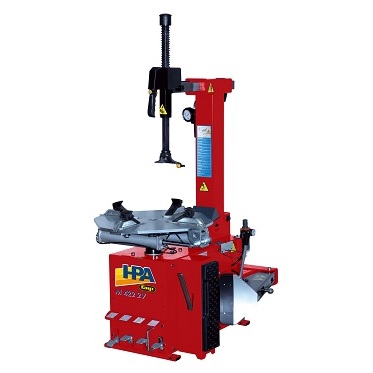

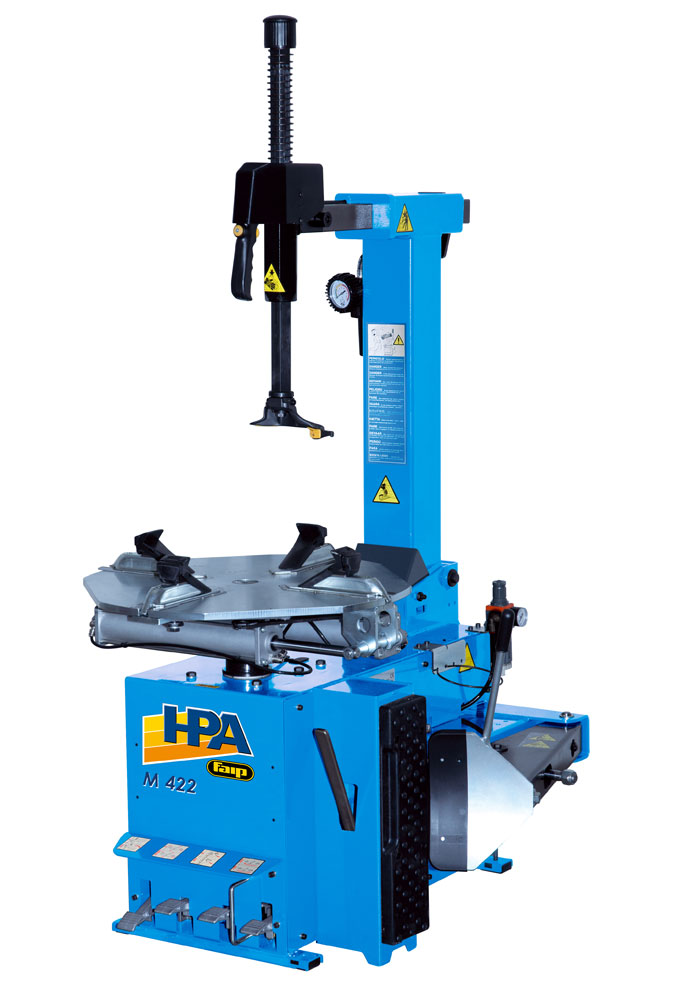

Automatic tyre changer for alloy rims from 10” to 22”
Outside locking up to 22"
Standard bead breaker
Single speed motor.
Can be supplied with Ally 30 Help Arm.
Specification
Made In Italy
Rim Diameter : 10” – 22”
Bead Breaking Power ( Blade ) : 10 BAR / 15,500 Nm
Bead Breaking Blade Opening : 320mm
Maximum Wheel Diameter: 1000 mm / 39”
Maximum Wheel Width: 3” to 12.5”
Motor: 1 Speed 230V / Single Phase / 50-60Hz
Working Pressure : 10 BAR
Noise Level : < 70 dB ( A )
Maximum Self Centering Torque : 1,200 NM
Weight: 224 Kg
Dimensions
Dimensions
Downloads
Accessories

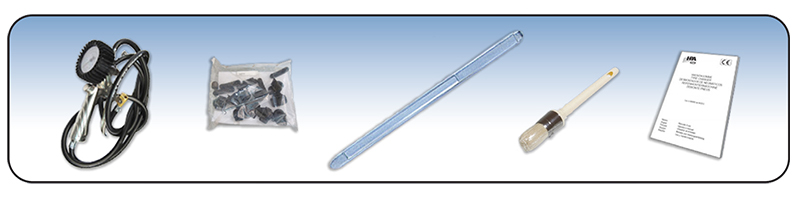

Complete with standard accessories
Tyre Lever
Inflating Gun
Lubrication Brush
Plastic Inserts for Fitting Head
Optional Extras
Set of Motorbike attachments
Set of 12 Jaw Pads
Set of 6 plastic covers for blade
Set of 6 plastic covers for tyre lever
Plastic tool head set.
